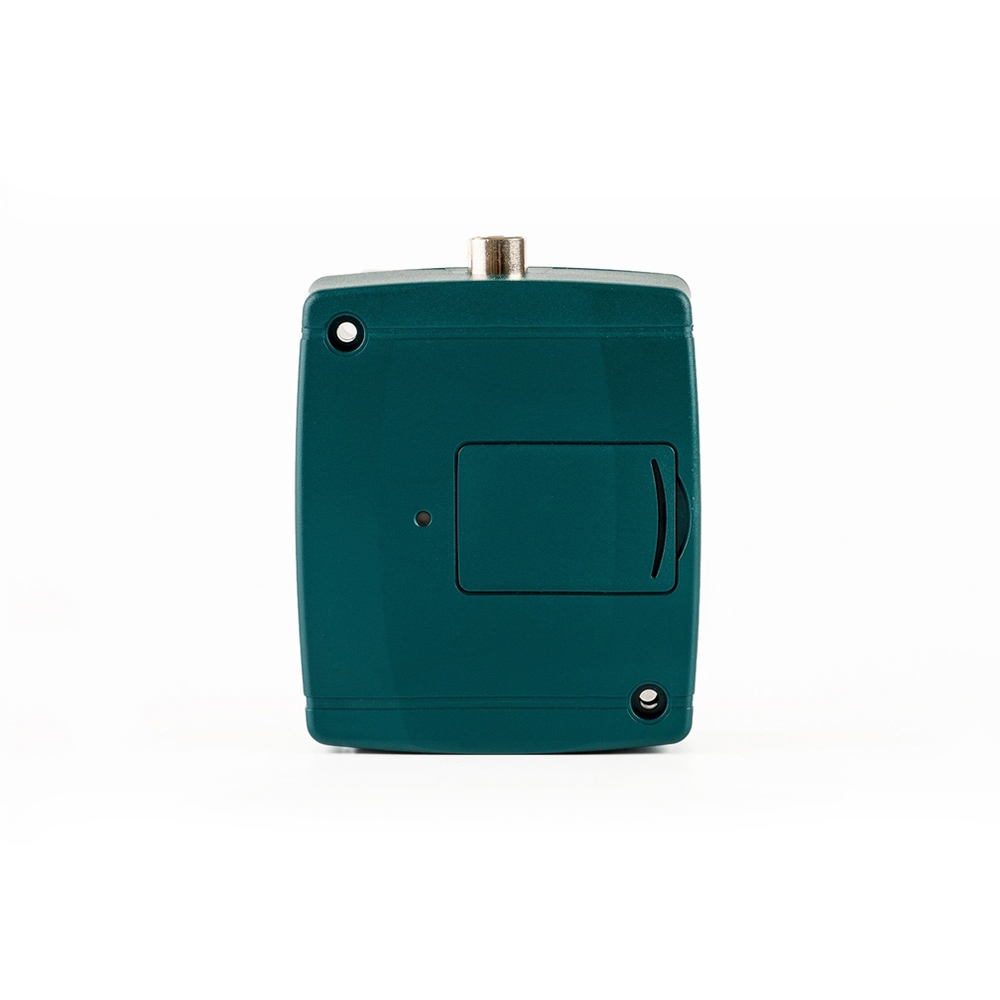

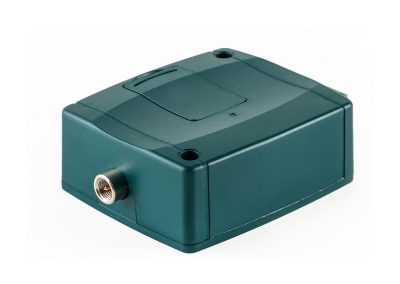

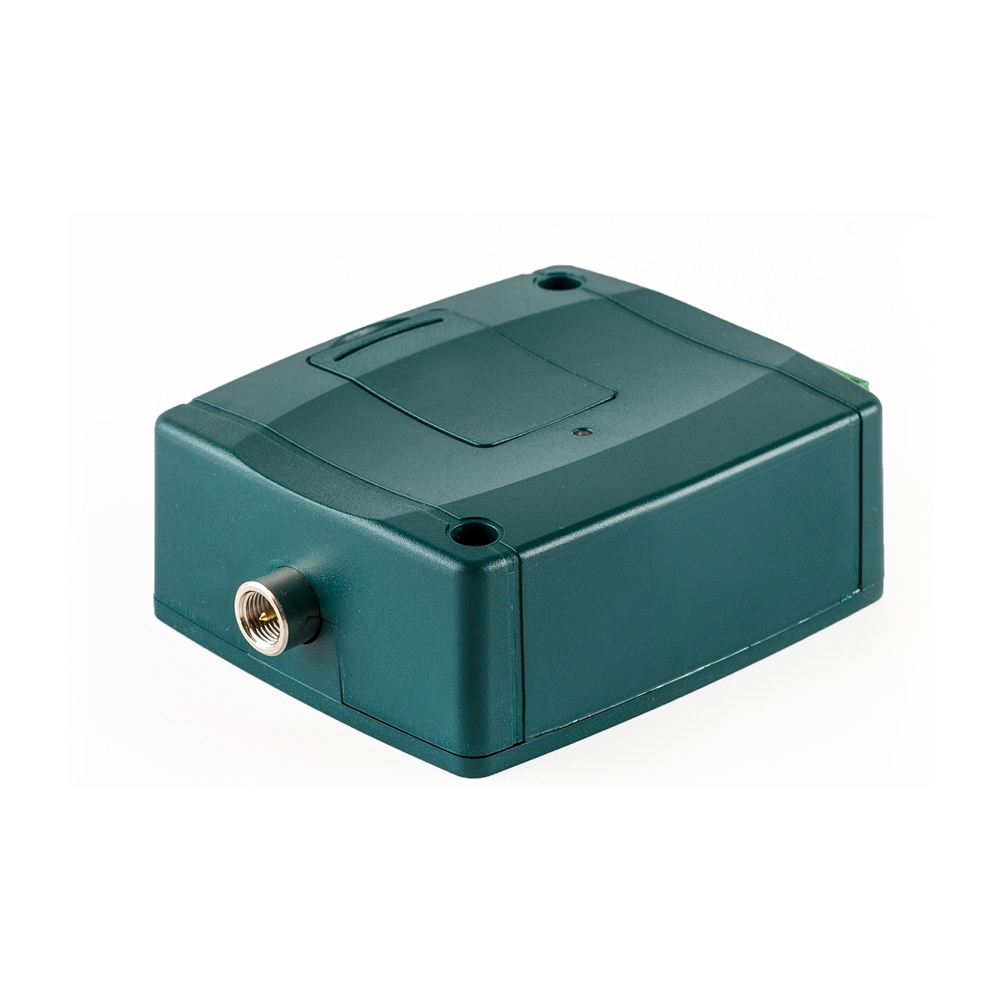

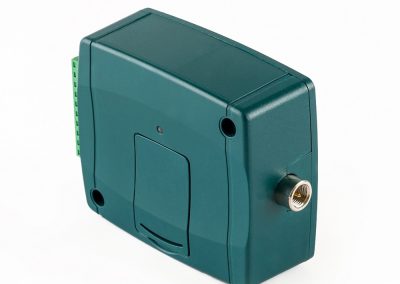

GSM Gate Control 20
Characteristics
GSM – based 20 – users remote control for electric gates and barriers
Main features:
- Remote control of automated gates, barriers or other controllabel electric devices by free GSM call
- Control of 2 different gates using caller identification and by hiding the caller ID
- Possibility to register up to 20 users
- Sending SMS about changing the status of 2 contact entries
- SMS sending limit
- Forwards incoming SMS messages
- Programming and status quer by SMS
Tehnical secification:
- Frequency band:
GSM 900/1800 MHZ
- Input:
9-30V AC/DC
- Current consumption:
Nominal: 40mA
Maximum: 400mA
- Operating temperature:
-20°C – +70°C
- Dimensions:
84 x 72 x 32mm
- Weight: 200g
Parameters
Tehnical specification
-
GSM band900/1800, 850/1900 MHz
-
GSM phone typeSIMCOM SIM900
-
Dimensions84x72x32 mm
-
Operating temperature-20 C – +70 C
-
Weight200 g
-
Supply voltage9-30V AC/DC
Current consumption
-
Maximum400mA
-
Nominal40mA
Characteristics
-
Transmission chanelGSM
-
Adjustable input sensitivityYes
-
Security passwordYes
-
CasingPlastic
-
User phone numbers for forwarding incoming SMS messages1
-
User phone numbers for reporting1
-
User phone numbers for output control20 / Unlimited
-
Caller identificationyes
-
Output control through free GSM callYes
-
Configurable inputs(NO/NC)Yes
-
Contact inputs2
-
Trimitere SMS individual la telefonul utilizatorului cu mesaj fixDa
-
Programming methodSMS
-
Relay outputs2
-
Alarm retrictionYes
-

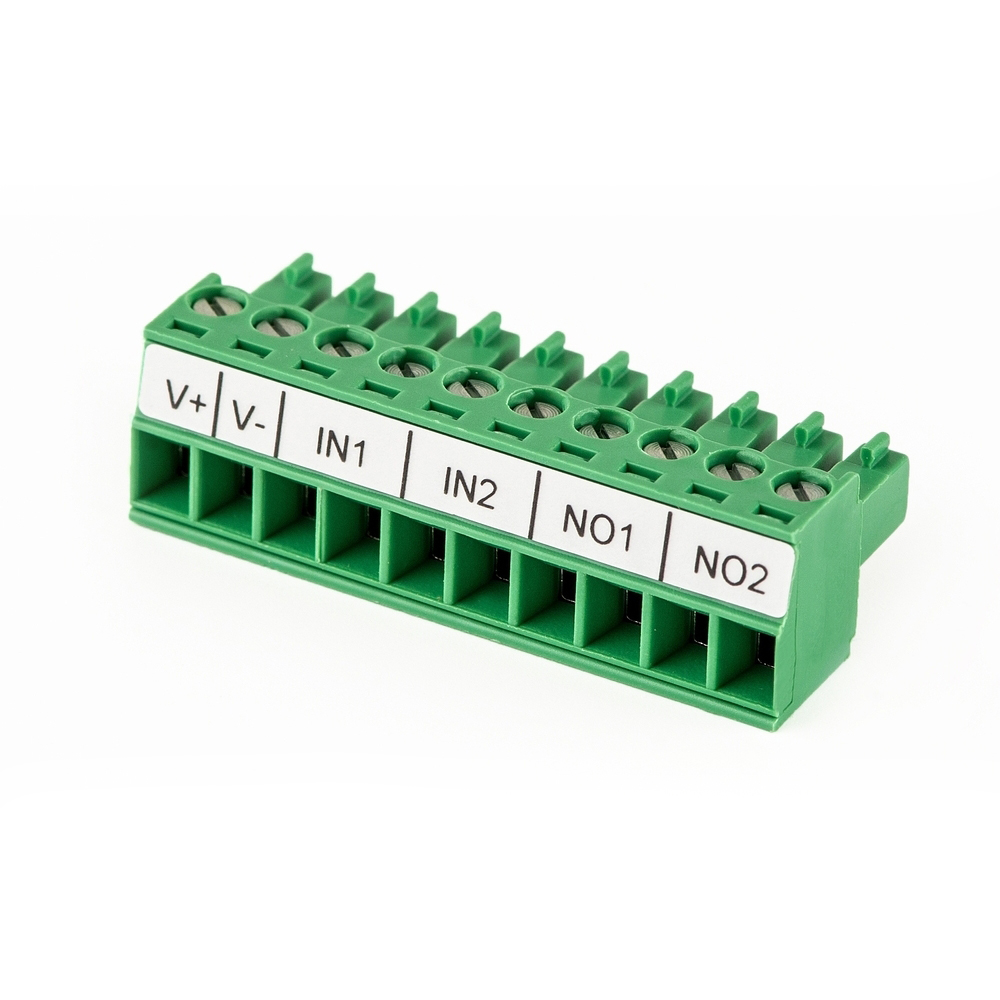

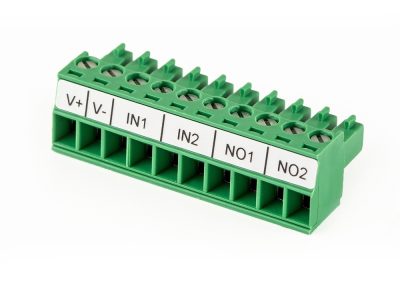

Terminal connector designConectable
GSM Gate Control 20
GSM Gate Control 20
GSM Gate Control 20
GSM Gate Control 20
-
Product ID
5999881193343
-
Size
170x120x35 mm
-
Weight
0.22 kg
