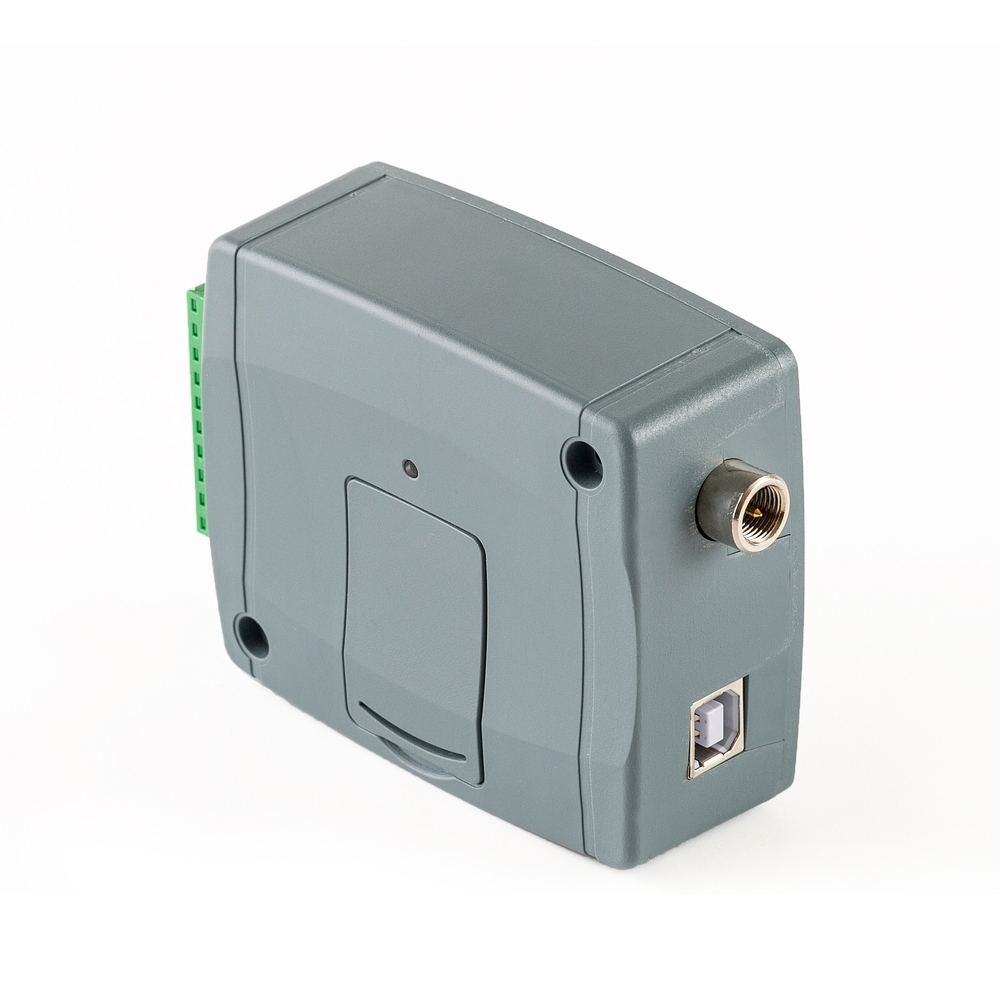

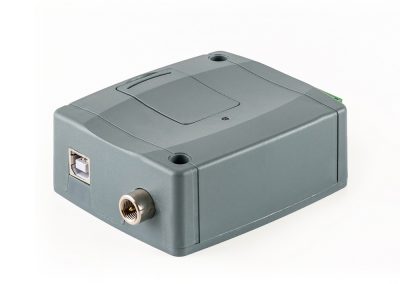

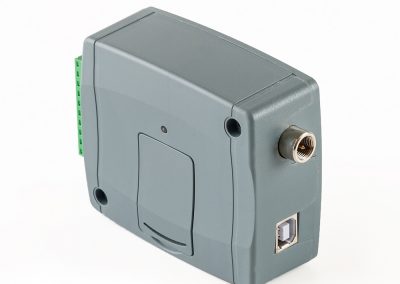

GSM Gate Control Pro 1000
Caracteristici
GSM-based remote control for electric gates and barriers
Main features:
- Control of electric gates and barriers via mobile phone, smartphone application or via GSM call
- 1000-user variant
- Status reporting of 4 contact inputs via e-mail, SMS or GSM call
- Transmits doorbell activity to mobile phone
- ONVIF camera support, makes camera pictures available in the smatphone application
- Configurable user permissions and entry periods
- Configurable automatic timed controls
- Event log and report sending in e-mail
Tehnical data:
- GSM band:
GSM 900/1800 MHz or
GSM 850/1900 MHz
- Input:
9-30V AC/DC
- Current consumption:
Nominal: 120mA
Maximum: 500mA
- Operating temperature:
-20°C – +70°C
- Dimensions:
84 x 72 x 32mm
- Weight: 200g
Application area:
Electric gates, garage doors, barriers, parkinglots, parking garages, multi-storey car parks, rezidential parks, other controls
Parameters
Tehnical specification
-
GSM band900/1800, 850/1900 MHz
-
GSM phone typeSIMCOM SIM900
-
Dimensions84x72x32 mm
-
Operating temperature-20 C – +70 C
-
Weight200 g
-
Supply voltage9-30 VAC/DC
Current consumption
-
Maximum500mA
-
Nominal120mA
Characteristics
-
Transmission channelGSM / GPRS
-
Built-in internal clockYes
-
Adjustable input sensitivityYes
-
Security passwordYes
-
CasingPlastic
-
Event logs/ number of stored eventsYes / 1200
-
User phone numbers for frowarding incoming SMS messages1
-
User phone numbers fro reporting4
-
User phone numbers for output control1000
-
Caller identificationYes
-
Output control through freeGSM callYes
-

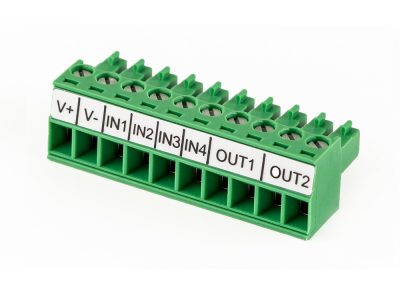

Configurable inputs (NO/NC)Yes
-
Contact input4
-
Mobile applicationYes
-
Individual email sending with predefinable messageYes
-
Induvidual SMS sending to user phone numbers with predefinableYes
-
Periodic test reportYes
-
Programming methodUSB / IP
-
Programming softwareYes
-
Relay outputs2
-
Alarm restrictionYes
-
Terminal connector designConectable
GSM Gate Control Pro 1000
GSM Gate Control Pro 1000
GSM Gate Control Pro 1000
GSM Gate Control Pro 1000
-
ID product
5999881193268
-
Size
230x160x42 mm
-
Weight
0.38 kg
